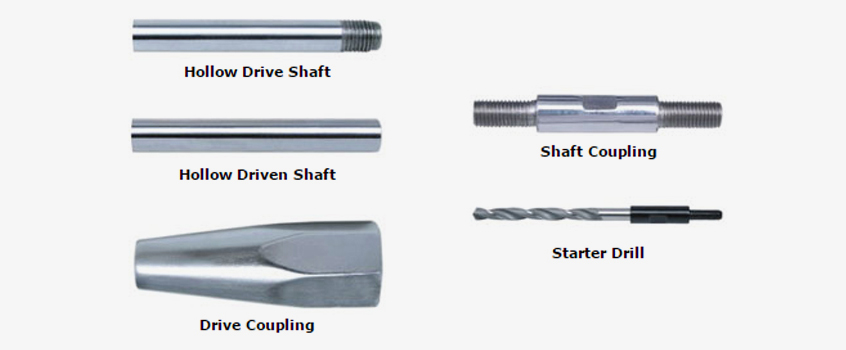

4ft. (1.2m) long aircraft quality steel shafts to connect to drive.
- Model DS-300 to DS-500
- Model DS-562 to DS-750
4ft. (1.2m) long aircraft quality steel shafts to connect to driven shafts. Order quantities based on length of tube to be cleaned.
- Model DN-300 to DN-500
- Model DN-562 to DN-750
To Couple hollow drive shaft to drive.
- Model DC-300 to DC-500
- Model DC-562 to DC-750
To Couple 2 hollow shafts together.
- Model SC-300 to SC-500
- Model SC-562 to SC-750
To make pilot holes in deposits of completely clogged tubes.
- Model SD-312 to SD-500
- Model SD-562 to SD-750
| Tube I.D.'s suited for | Model No. | Hollow Drive Shaft Model No. | Hollow Driven Shaft Model No. | Drive Coupling Model No. | Shaft Coupling Model No. | Starter Drill Model No. | |
| inch | mm | ||||||
| 3/16-1/4 | 4.8-6.4 | C-10 | DS-300 | DN-300 | DC-300 | SC-300 | - |
| 3/8 | 9.5 | DS-312 | DN-312 | DC-312 | SC-312 | SD-312 | |
| 7/16 | 11.1 | DS-375 | DN-375 | DC-375 | SC-375 | SD-375 | |
| 1/2-9/16 | 12.7-14.3 | DS-437 | DN-437 | DC-437 | SC-437 | SD-437 | |
| 5/8-11/16 | 15.9-17.5 | DS-500 | DN-500 | DC-500 | SC-500 | SD-500 | |
| 3/4-13/16 | 19.1-20.6 | DS-562 | DN-562 | DC-562 | SC-562 | SD-562 | |
| 7/8-1 | 22.2-25.4 | CP-315 | DS-625 | DN-625 | DC-625 | SC-625 | SD-625 |
| 1.1/16-2 | 27.0-51.0 | DS-750 | DN-750 | DC-750 | SC-750 | SD-750 | |
Build your own kit by adding price of Drive (C-10 or CP-315), Hollow Drive Shafts, Hollow Driven Shafts, Shaft Couplings, Drive Coupling based on length of tube to be cleaned and cleaning tools (Brushes, Carbide Drills, Buffing Tools).

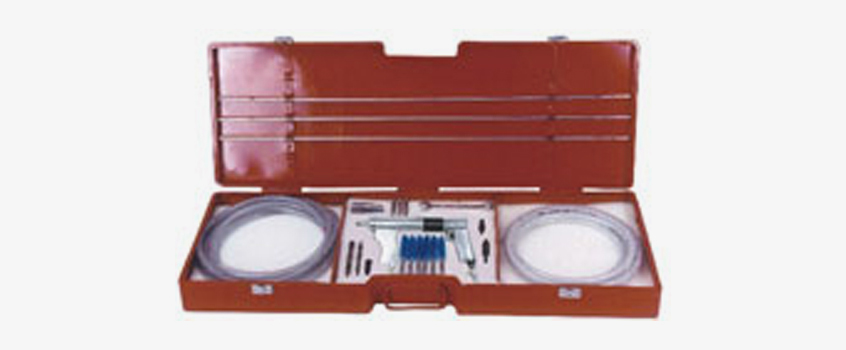

We will supply all the above in a handy metal box at no extra charge ! The box will accommodate a maximum of 1 Drive + 4 Hollow Shafts + 5 Couplings + 18 Cleaning Tools (Brushes, Carbide Drills, Buffing Tools).
