Wheel Brush Tools 1" & UP I.D.
Circular Brush Tools for Straight Tubes
These tools consist of 4 stainless steel circular brushes that are mounted on a shaft and connected to a Universal Joint. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts.
| Straight Tube I.D. | Circular Brush Tool Model | Brush O.D. | Spare Brush
Model (4 needed) |
Spare Universal Joint Model |
||
| inch | mm | inch | mm | |||
| 1.1/8-1.5/16 | 28.6-33.3 | CBTS-1125 | 1 | 25.4 | CBSB-1125 | UCT-1063 |
| 1.3/8-1.9/16 | 35.0-39.7 | CBTS-1375 | 1 1/4 | 31.7 | CBSB-1375 | UCT-1063 |
| 1.5/8-1.13/16 | 41.3-47.1 | CBTS-1625 | 1 1/2 | 38.1 | CBSB-1625 | UCT-1063 |
| 1.7/8-2.1/16 | 47.6-52.6 | CBTS-1875 | 1 3/4 | 44.5 | CBSB-1875 | UCT-1250 |
| 2.1/8-2.5/16 | 54.0-58.7 | CBTS-2125 | 2 | 51.0 | CBSB-2125 | UCT-1250 |
| 2.3/8-2.9/16 | 60.3-65.1 | CBTS-2375 | 2 1/4 | 57.1 | CBSB-2375 | UCT-1250 |
| 2.5/8-2.13/16 | 66.7-71.6 | CBTS-2625 | 2 1/2 | 63.5 | CBSB-2625 | UCT-1250 |
| 2.7/8-3.1/16 | 73.0-77.8 | CBTS-2875 | 2 3/4 | 70.0 | CBSB-2875 | UCT-1250 |
| 3.1/8-3.5/16 | 79.4-84.2 | CBTS-3125 | 3 | 76.2 | CBSB-3125 | UCT-1250 |
Note : For larger sizes, please enquire.
Circular Brush Tools for Curved Tubes

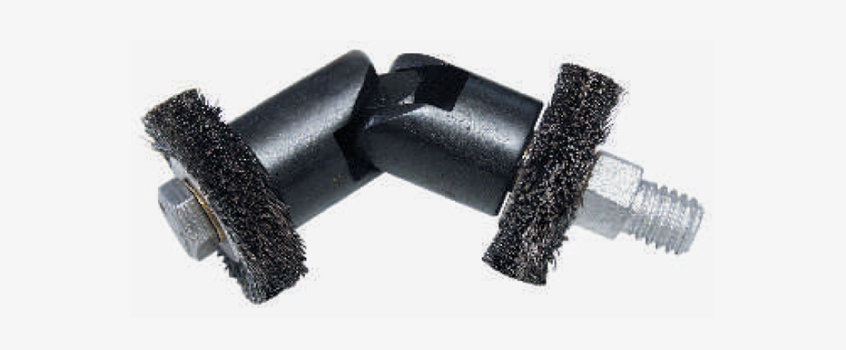

These tools consist of 2 stainless steel circular brushes that are mounted onto a Double Universal Joint for maximum flexibility. These tools are used to clean soft to medium scales. Replacement circular brushes can be ordered when wear starts.
| Curved Tube I.D. | Circular Brush Tool Model |
Brush O.D. | Spare Brush
Model (2 needed) |
Spare Universal Joint Model |
||
| inch | mm | inch | mm | |||
| 1.1/4-1.7/16 | 31.7-35.6 | CBTC-1125 | 1 | 25.4 | CBSB-1125 | UCT-1500 |
| 1.1/2-1.11/16 | 38.1-42.9 | CBTC-1500 | 1.1/4 | 31.7 | CBSB-1375 | UCT-1500 |
| 1.3/4-1.15/16 | 44.5-49.2 | CBTC-1750 | 1.1/2 | 38.1 | CBSB-1625 | UCT-1500 |
| 2-2.3/16 | 51.0-55.6 | CBTC-2000 | 1.3/4 | 44.5 | CBSB-1875 | UCT-1250 |
| 2.1/4-2.7/16 | 57.1-61.9 | CBTC-2250 | 2 | 51.0 | CBSB-2125 | UCT-1250 |
| 2.1/2-2.11/16 | 63.5-68.3 | CBTC-2500 | 2.1/4 | 57.1 | CBSB-2375 | UCT-1250 |
| 2.3/4-2.15/16 | 70.0-74.6 | CBTC-2750 | 2.1/2 | 63.5 | CBSB-2625 | UCT-1250 |
| 3-3.3/16 | 76.2-81.0 | CBTC-3000 | 2.3/4 | 70.0 | CBSB-2875 | UCT-1250 |
| 3.1/4-3.9/16 | 82.6-90.6 | CBTC-3250 | 3 | 76.2 | CBSB-3125 | UCT-1250 |
Note : For larger sizes, please enquire.
